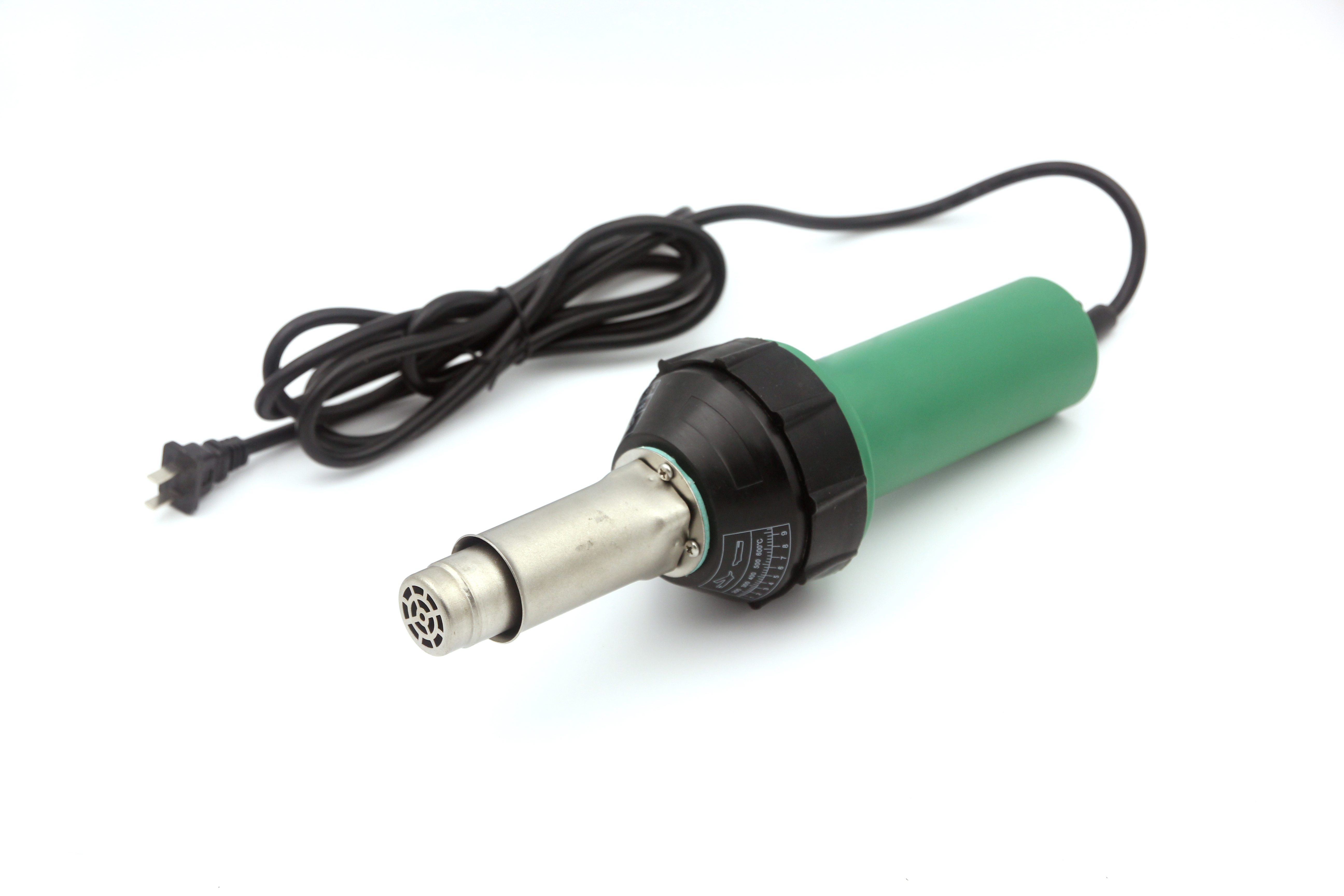

Plastic hot air gun

Power:1600W、2000W

Temperature:50-650℃(Adjustment temperature from Gear 0 to 9)

Frequency:50/60 Hz

Air flow:Max 260L/min air

Static pressure:3000 PA(30 MBAR)

Noise level:65 DB

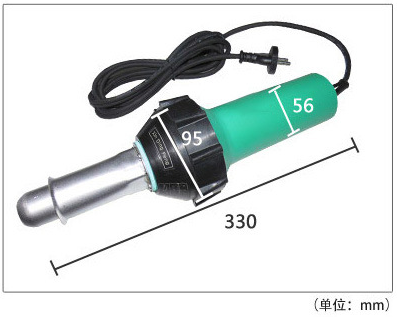

Size:330*95mm,Handle diameterΦ56mm

Weight:1.27kg(Including 3M power cord)

CAUTION: When the Welding Torch is finished, please adjust the temperature to low level. Do not shut down the machine until the gun barrel is cooled, so as not to damage the parts and affect the service life
Ask for a quotation
  • Description
  • Additional information

Characteristic:

1)9 Gears potentiometer adjustable temperature: Not only more accurate but also adjustable continuously in order to increase efficiency by using stabilized circuit board.Advanced Temperature control program with double Protection of Electronic overheating and photosensitivity can lead to longer service life.

2) Heating core used Sweden brand “KANTHAL”resistance wire, high temperature resistance and heating evenly,longer service time.

3) Motor uses High quality bearing bearing,Motor speed up to 12500 RPM,The air volume reach 260L/Min,Less qnet, not hot.

4) Brand new Dynamic balancing blade,shake lighter,slim hand shank ,better hand feeling,less tired of hand

5) Bottom Wind Net:Dust prevention protects service life of Heating Core.


Application scope:

Widely used in advertising cloth, tarpaulin, waterproof film, impermeable liner, waterproof roll material, pipeline, electronic components, automobile bumper, sports floor, pearl cotton processing, electric aqueduct, plastic pipe, PP/PE/PVC and other plate and membrane structure welding, local welding and repair of geomemes.



Caution:

    One key power off of delay cooling automatically: Turn the power off directly after use. No need to Knob the temperature to zero point before turn the power off, It can be done in  5 minutes using function of One key power off of delay cooling automatically.This can prolong life of heating element.

Tips:Hot air gun will sound for 5 minutes after turning power off.The fan inside cools down Heating core then the power closes in 5 minutes automatically.Nothing to do with other things.
